Pocket Locations Menu

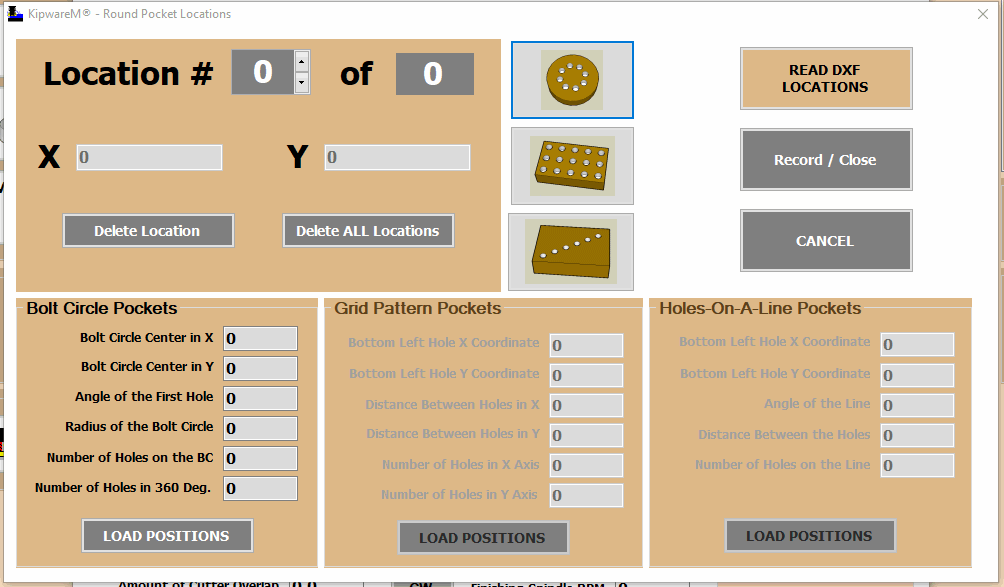

The POCKET LOCATIONS menu gives users the ability to enter X,Y locations directly ... or to select an available pattern and have KipwareM® automatically calculate the X, Y locations for the pattern described.





Available patterns are :

1)Bolt Circle

2)Grid Pattern

3)Holes-On-A-Line



The inputs for these menus are the same inputs as in the patterns full menu.



Manual inputs are also available on this form and the number of hole locations that can be defined is unlimited.
